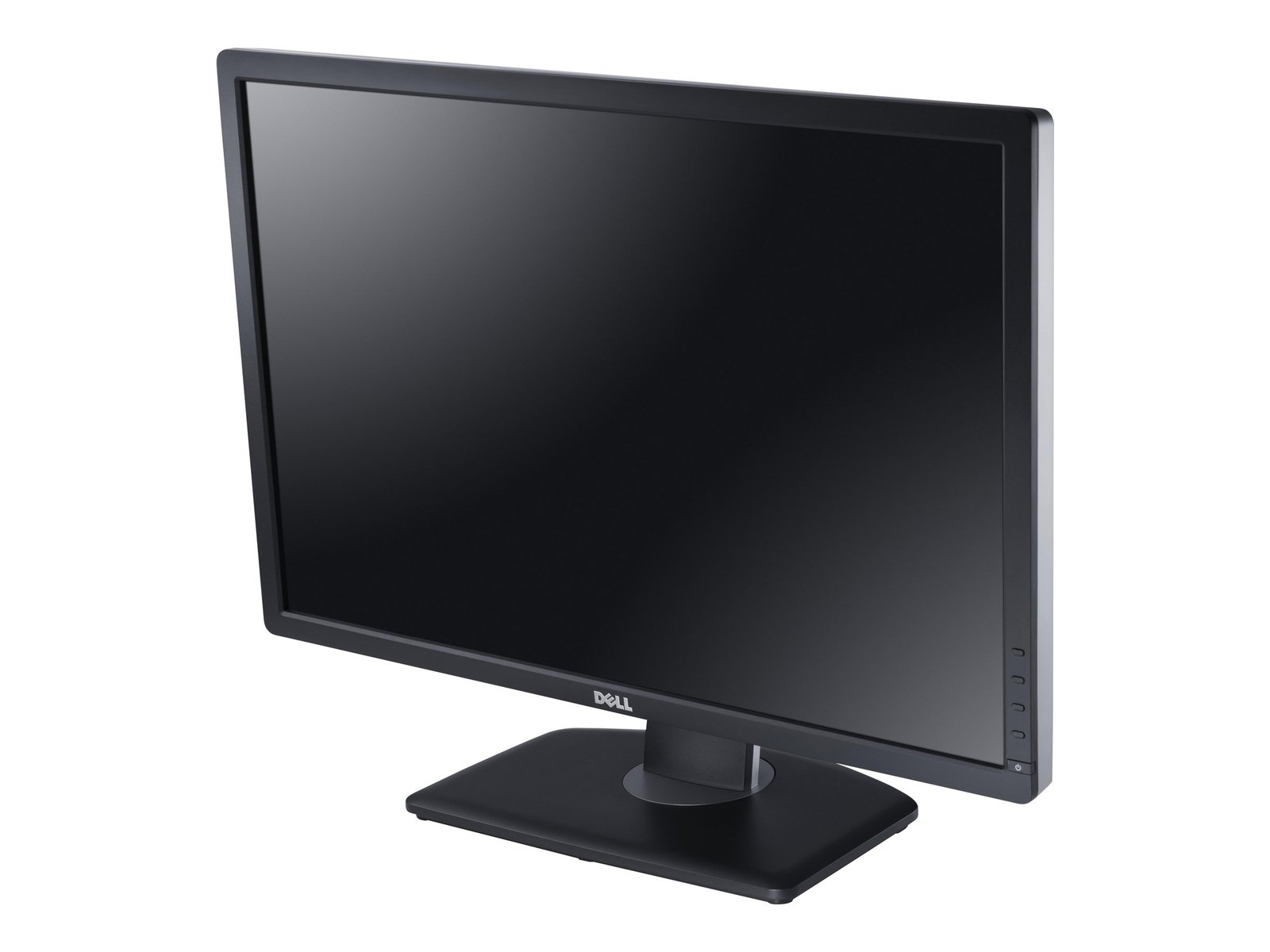

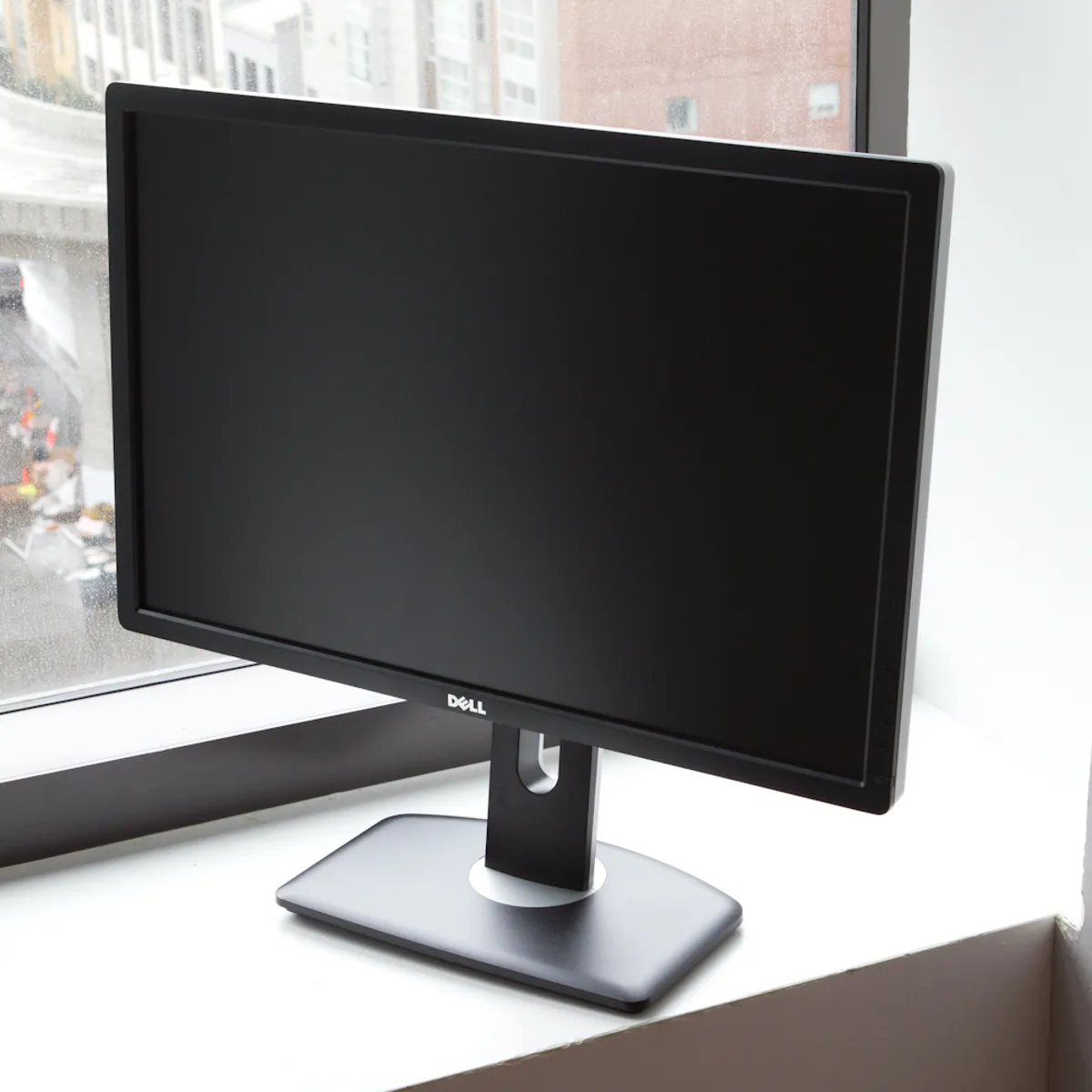

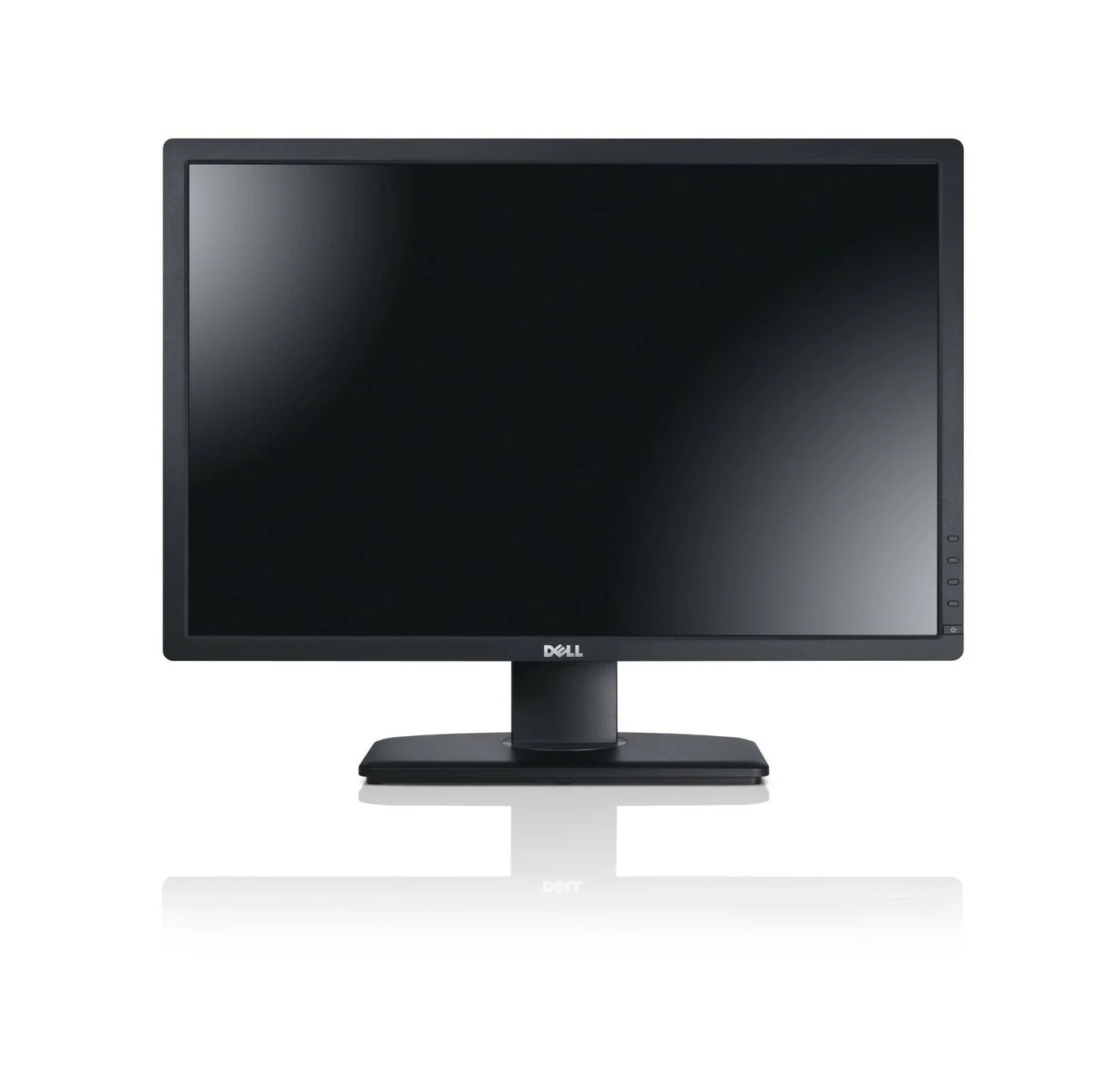

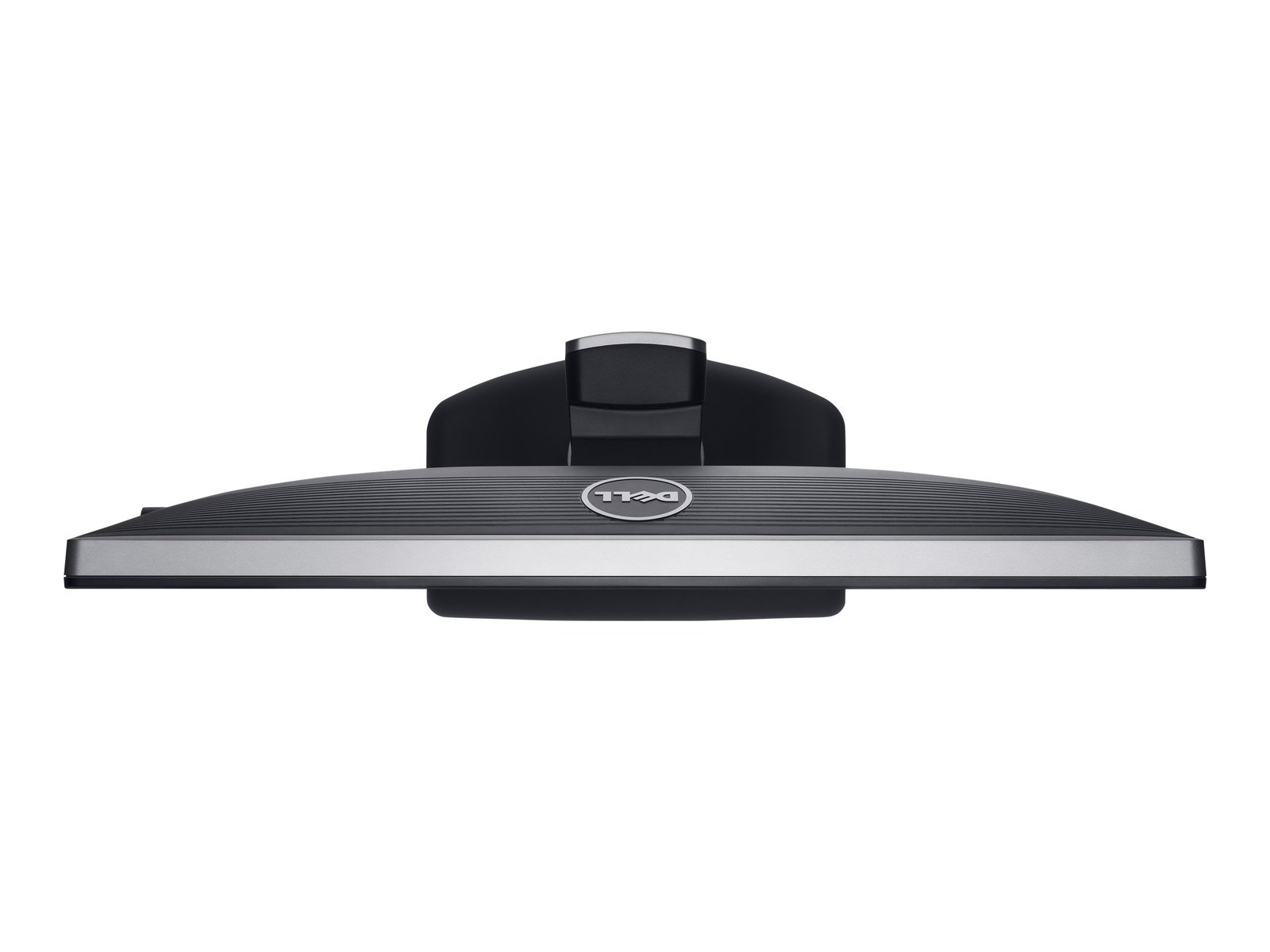

The Dell UltraSharp U2412M is a legendary professional monitor known for its 16:10 aspect ratio and flexible ergonomic stand. Below are the detailed technical specifications for this model.
Display Performance
-
Screen Size: 24 inches (60.96 cm) viewable
-
Panel Type: e-IPS (In-Plane Switching) with Anti-glare 3H hard coating
-
Native Resolution: $1920 \times 1200$ (WUXGA) at 60 Hz
-
Aspect Ratio: 16:10 (provides 11% more vertical space than 1080p)
-
Pixel Pitch: 0.27 mm
-
Brightness: 300 cd/m² (typical
-
Contrast Ratio: 1000:1 (typical) / 2,000,000:1 (dynamic)
-
Response Time: 8ms (gray-to-gray)
-
Color Support: 16.7 million colors
-
Color Gamut: 82% (CIE 1976), 72% (CIE 1931)
-
Viewing Angles: 178° horizontal / 178° vertical
Connectivity & Ports
-

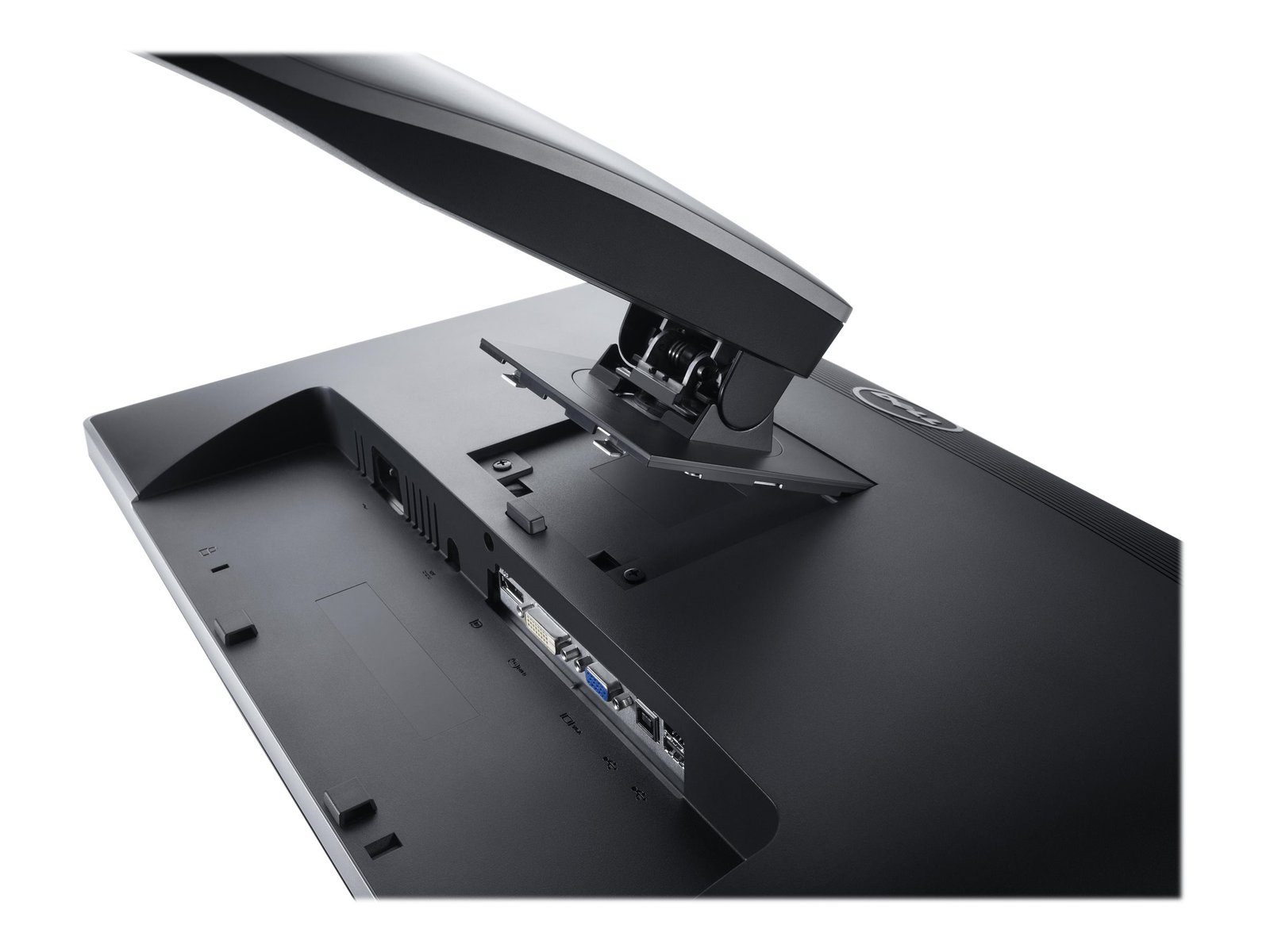

Video Inputs:
-
1 x DisplayPort (1.1a)
-
1 x DVI-D with HDCP
-
1 x VGA (Video Graphics Array)
-
-
USB Hub:
-
1 x USB 2.0 Upstream port (connects to PC)
-
4 x USB 2.0 Downstream ports (for peripherals)
-
-
Audio: DC power connector for optional Dell Soundbar (sold separately)
Physical & Ergonomics
-
Height Adjustment: 115 mm (approx. 4.5 inches)
-
Tilt: 4° forward / 21° backward
-
Swivel: 45° left / 45° right
-
Pivot: 90° clockwise (portrait mode)
-
VESA Mount: 100 mm x 100 mm
-
Dimensions (with stand): * Width: 556.0 mm (21.89″)
-
Depth: 180.3 mm (7.10″)
-
Height (Extended): 513.5 mm (20.22″)
-
Height (Compressed): 398.5 mm (15.69″)
-
-
Weight: 3.97 kg (8.75 lbs) — panel only
Power Consumption
-
Typical Use: 38W
-
Maximum: 72W
-
Sleep/Standby: < 0.5W
Tech Tip: If you are connecting this to a modern laptop that only has HDMI ports, you will need a HDMI to DisplayPort or HDMI to DVI adapter, as this monitor does not feature a native HDMI por
