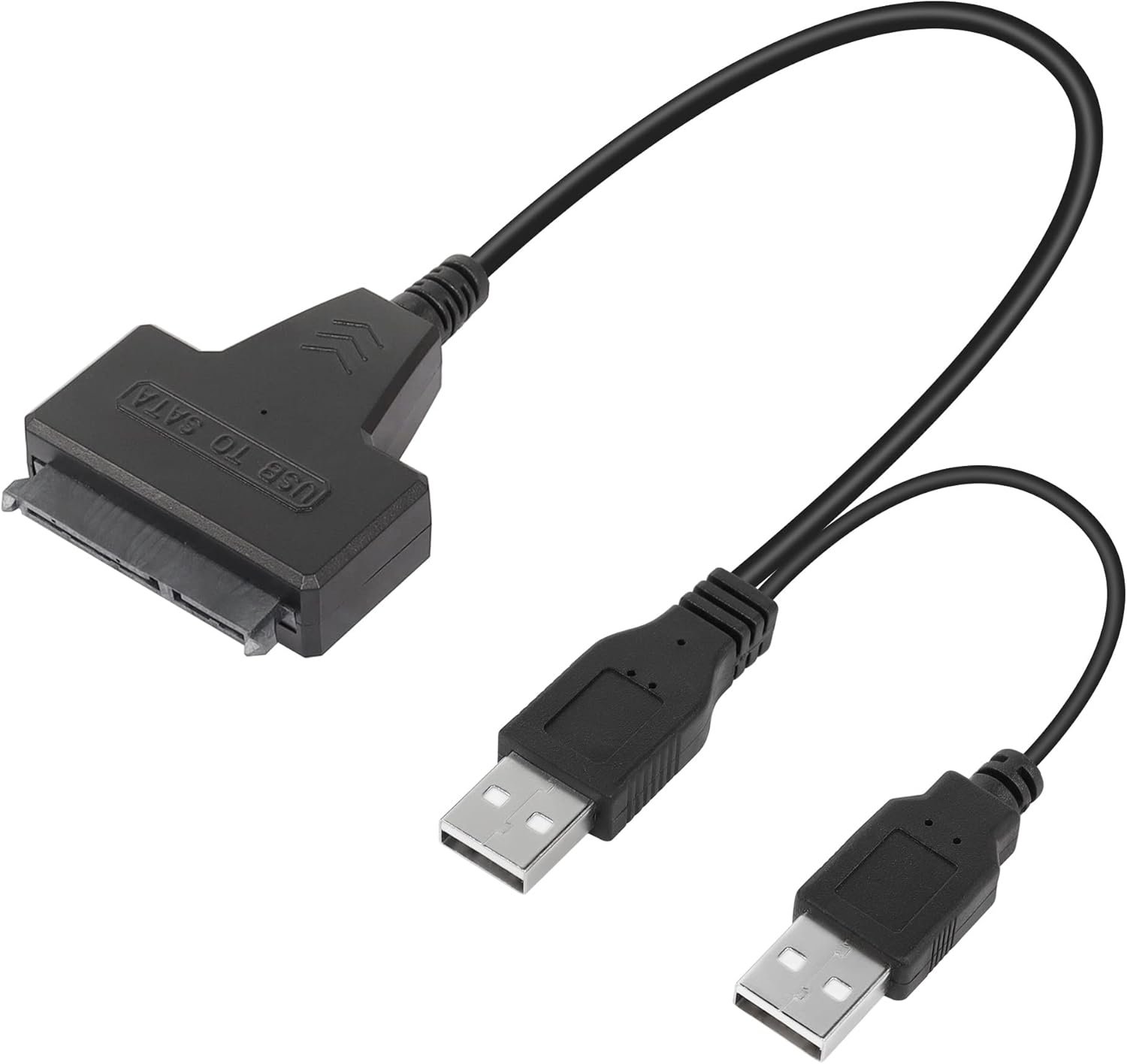

This USB 2.0 to SATA III Adapter Cable is a specialized Y-cable designed for 2.5-inch drives. Unlike standard single-head cables, this “Dual USB” version utilizes a secondary USB connector to provide supplementary power for high-performance mechanical hard drives.
Technical Specifications
-
Interface: SATA III (7+15 Pin) to Dual USB 2.0 (Type-A).
-

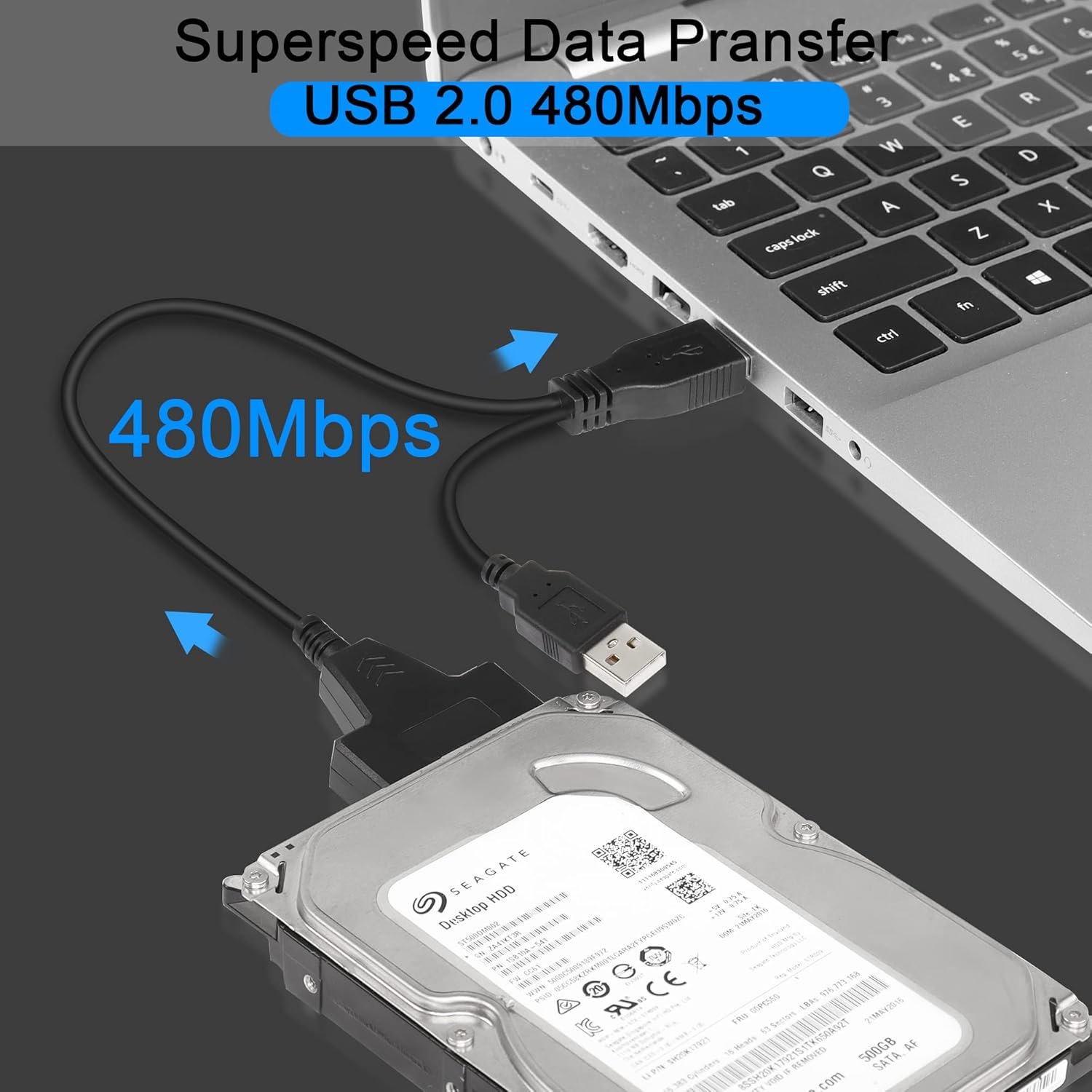

Data Transfer Speed: Up to 480 Mbps (USB 2.0 Standard).
-
Backward Compatibility: Fully compatible with SATA II and SATA I devices.
-

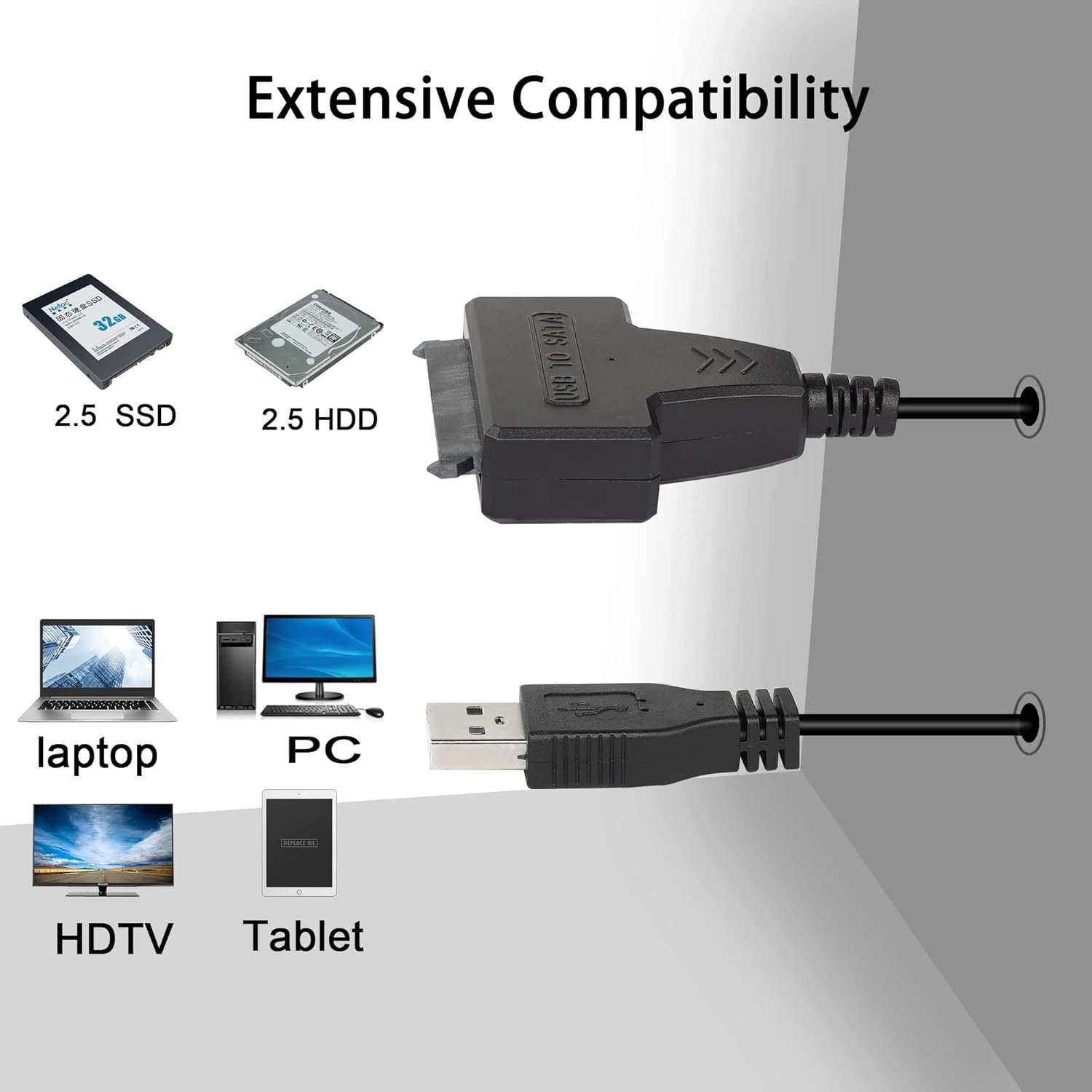

Drive Support: Optimized for 2.5-inch HDD and SSD (Standard laptop drives).
-
Power System: * USB Bus Power: Draws power from two USB ports simultaneously to support high-speed 7200RPM drives.
-

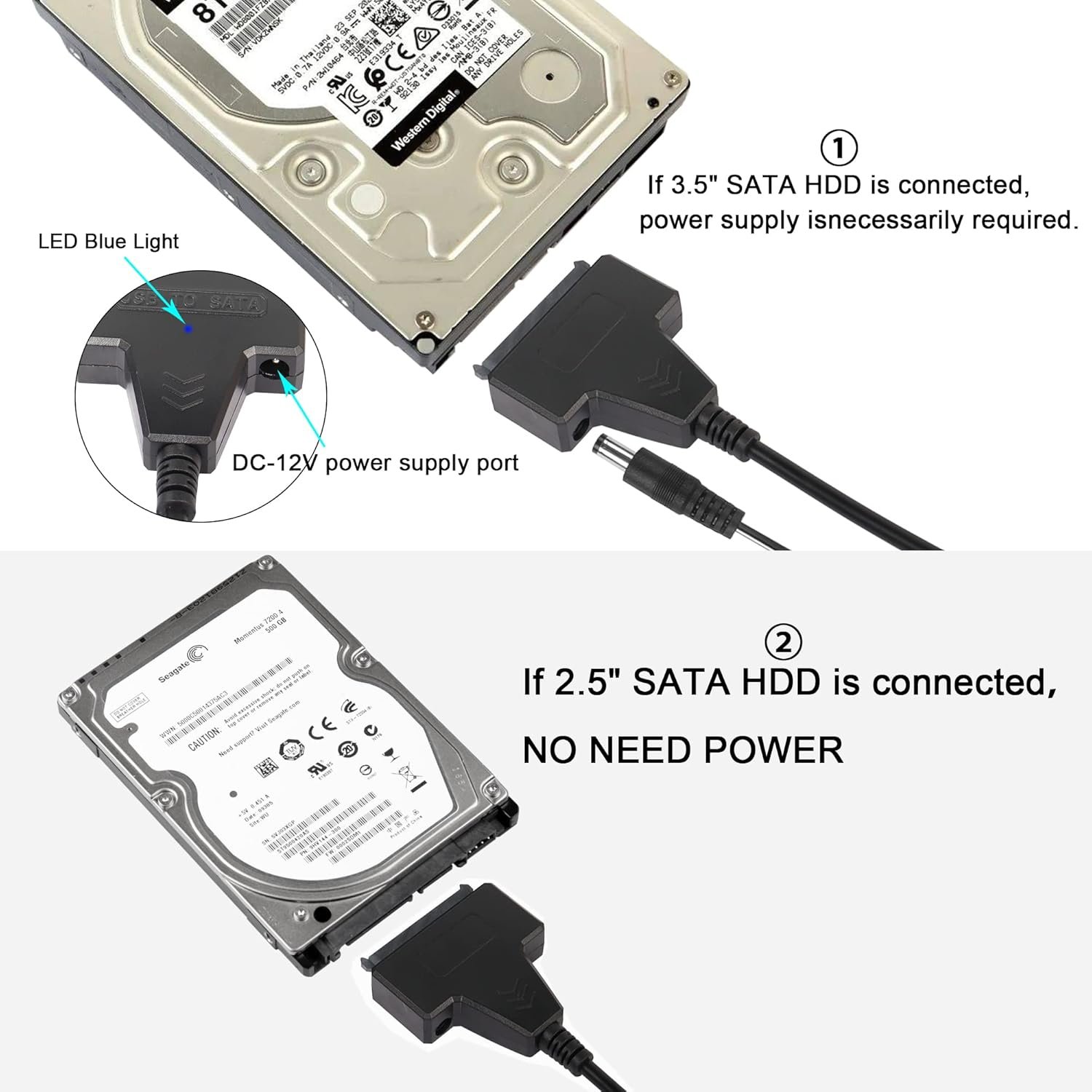

DC Port: Includes a secondary 5V DC Power Port (usually 3.5mm or 5.5mm) for external power if the USB ports provide insufficient current.
-
Key Features
-
Plug & Play: No drivers or software installation required for Windows, macOS, or Linux.
-
Y-Cable Design: The primary USB connector handles both data and power, while the secondary USB connector provides an extra 500mA of current.
-
Hot-Swappable: Allows you to connect or disconnect the drive while the computer is running without risk of data loss.
-

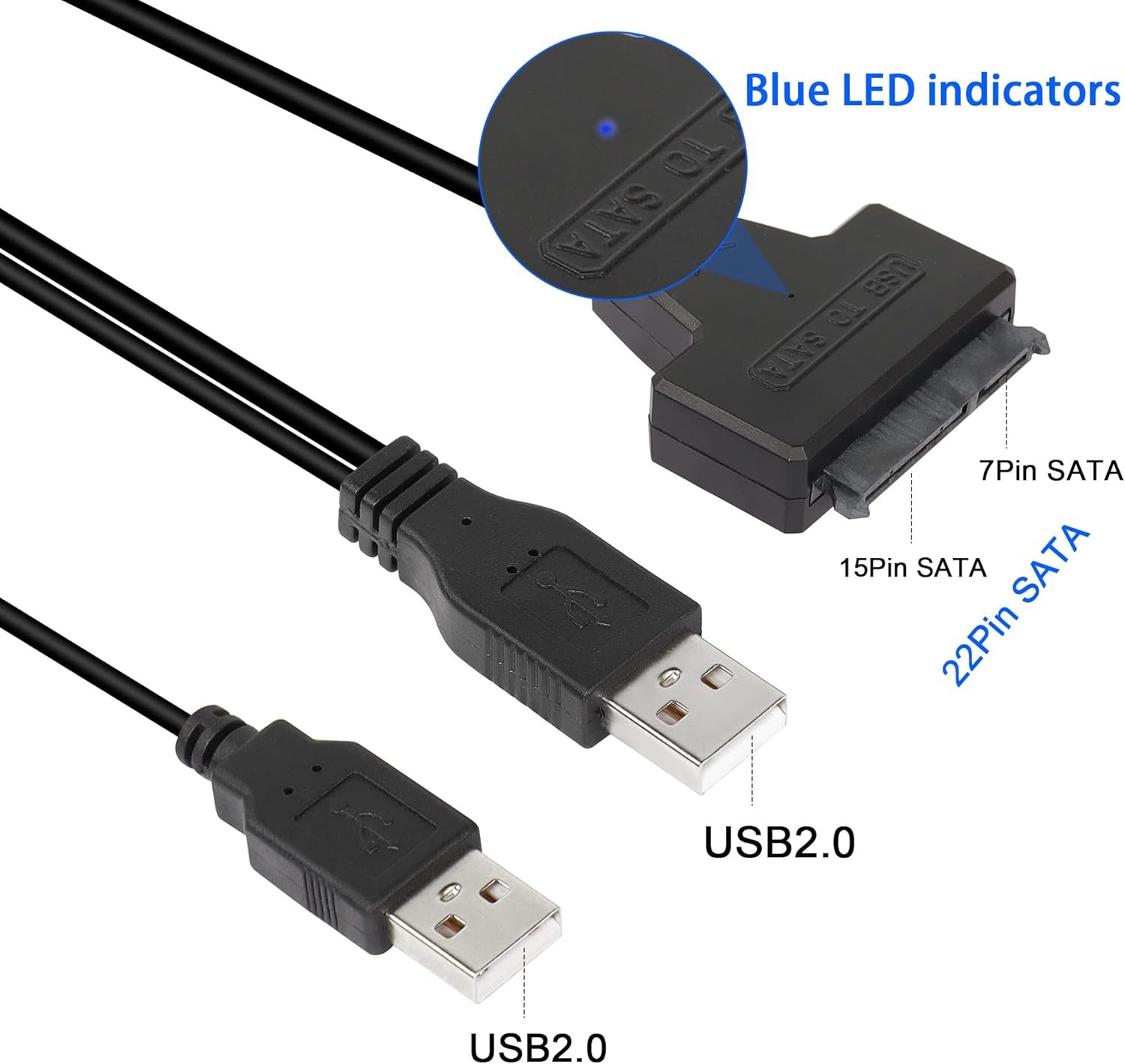

LED Indicators: * Red LED: Power status.
-
Blue LED: Data activity (flashes during reading/writing).
-
Build & Design
-
Material: Durable PVC cable jacket with reinforced connector heads.
-

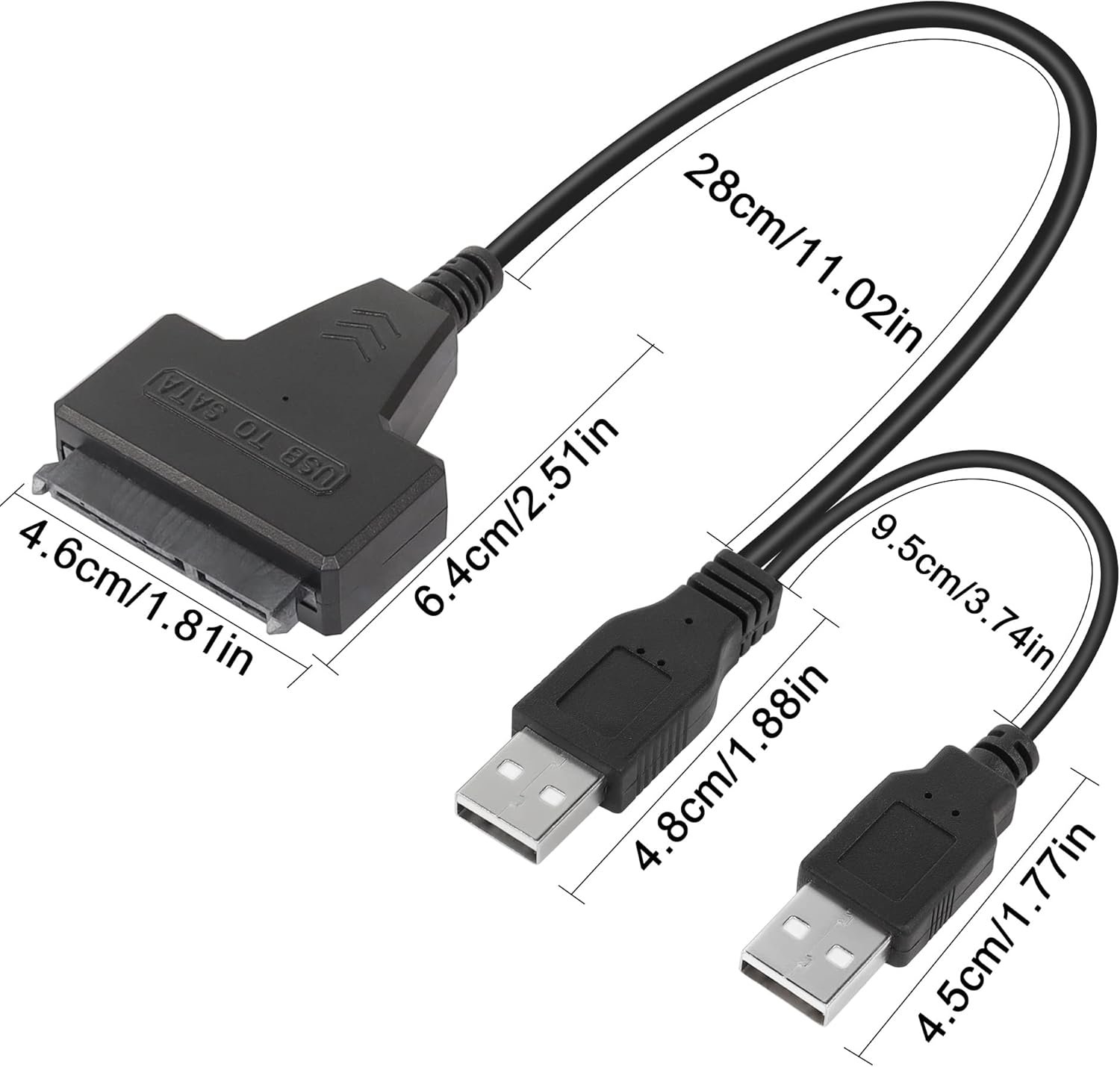

Cable Length: Approximately 30cm to 45cm (approx. 12–18 inches).
-
Portability: Compact, lightweight design that fits easily in a laptop bag or pocket.
-
Color: Matte Black.
