Technical Specifications
-
Host Interface: USB Type-C (Male, integrated cable).
-

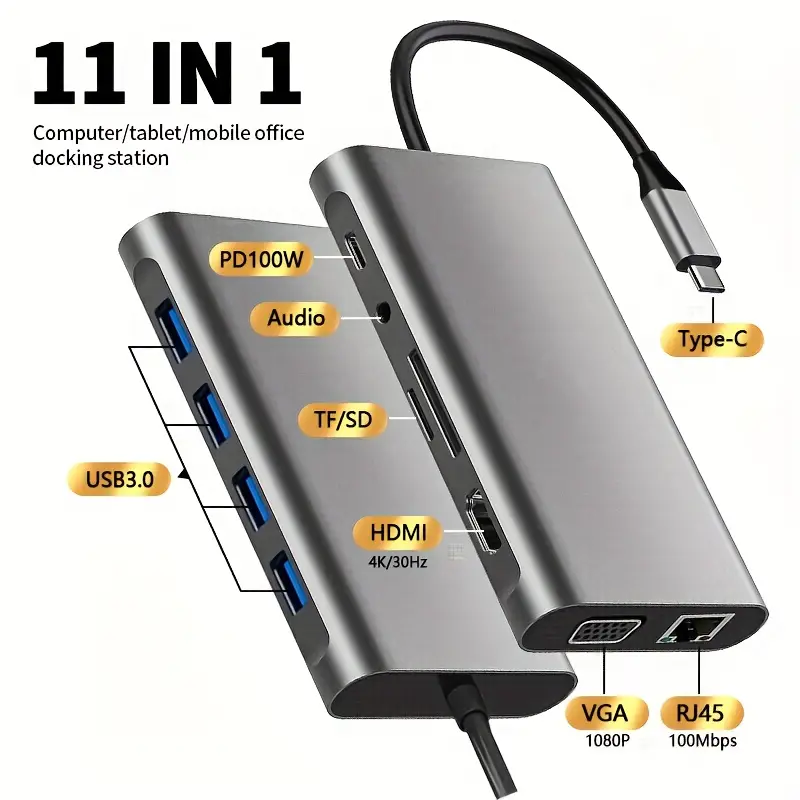

Video Outputs (Dual/Triple Display Support):
-
1x HDMI: Supports up to 4K (3840×2160) @ 30Hz.
-
1x VGA: Supports up to 1080P @ 60Hz.
-
Note: If both are used simultaneously, the resolution usually caps at 1080P. On macOS, both external screens will typically mirror each other; Windows often supports extended desktop (MST).
-
-
Power Delivery (PD):
-
1x USB-C PD Port: Supports up to 100W Pass-Through charging.
-
Self-Consumption: The hub itself usually reserves 8W–15W for its own operation.
-
-
Data Transfer (USB Ports):
-

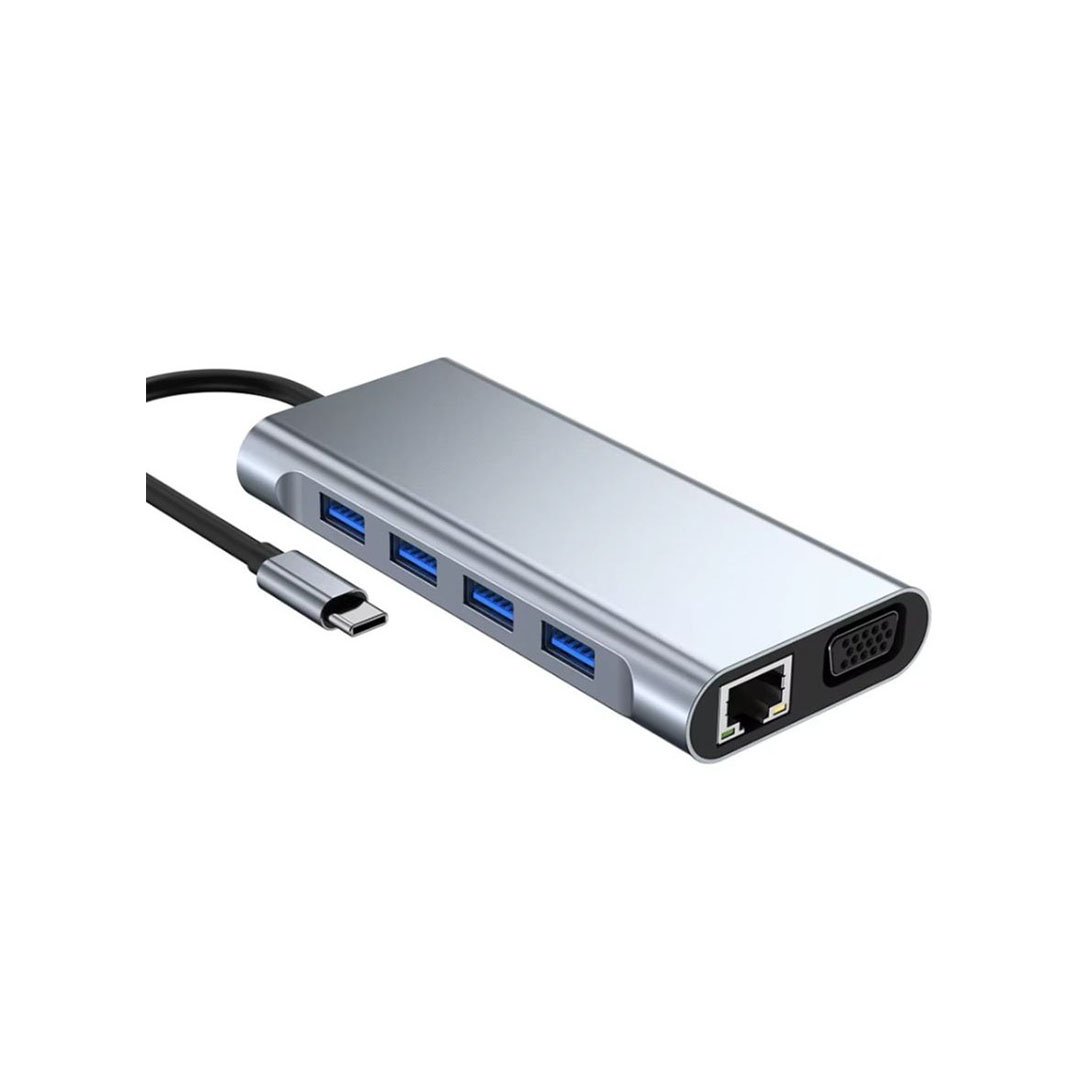

4x USB 3.0 Type-A: High-speed data transfer up to 5 Gbps.
-
-
Networking:
-
1x RJ45 Ethernet: Available in two variants depending on the specific model—100 Mbps (Fast Ethernet) or 1000 Mbps (Gigabit Ethernet).
-
-
Storage & Card Readers:
-
1x SD Card Slot (up to 104 MB/s).
-
1x TF/MicroSD Card Slot (up to 104 MB/s).
-
Constraint: Most models cannot read both cards at the exact same time.
-
-
Audio:
-
1x 3.5mm AUX Jack: Supports analog audio output (headphones/speakers).
-
-
Build Material: Aluminum Alloy (for durability and heat dissipation).
