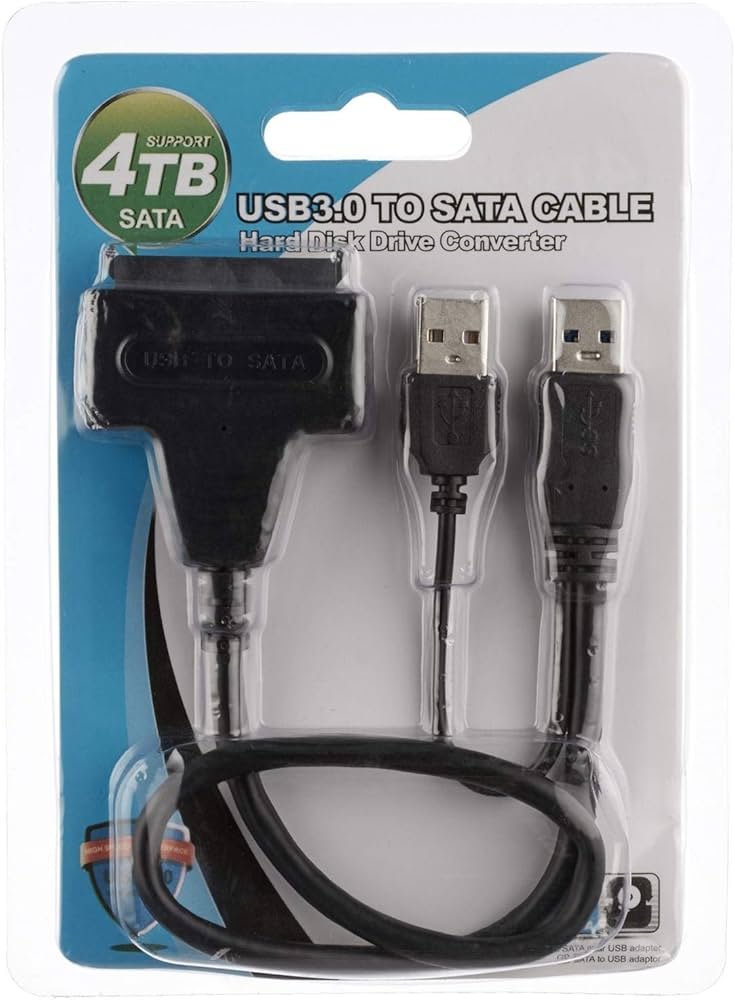

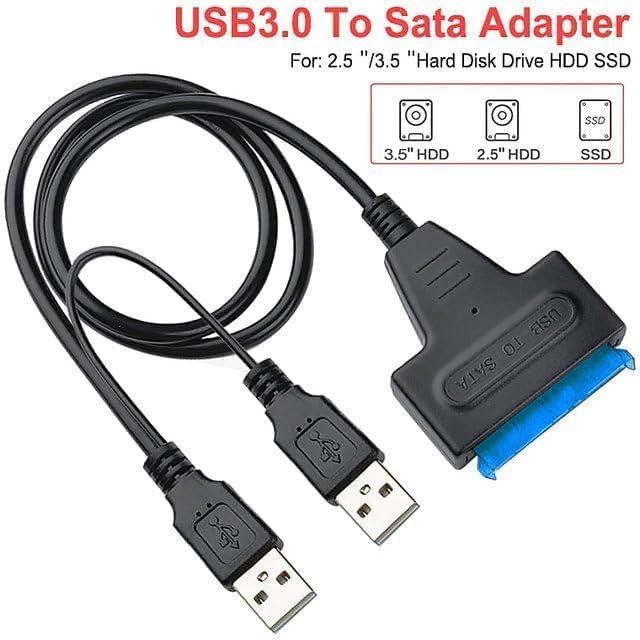

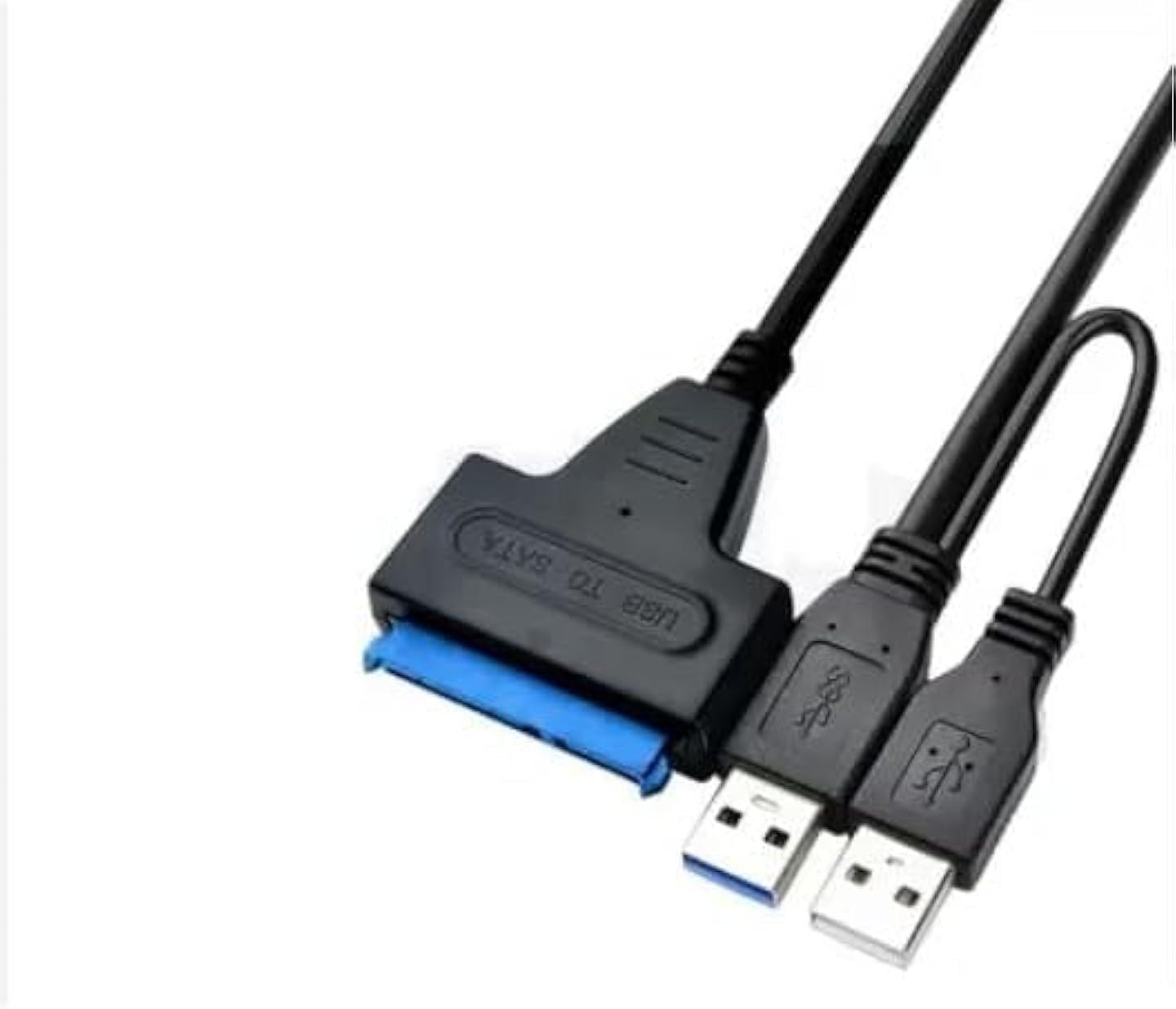

This USB 3.0 to SATA Hard Drive Converter is a high-speed bridge designed to support large-capacity drives up to 4 TB. It provides a significantly faster data transfer rate than legacy USB 2.0 models, making it suitable for large file backups and system cloning.

Core Technical Specifications

• Interface: USB 3.0 (Type-A) to SATA III (7+15 Pin).

• Capacity Support: Fully compatible with high-capacity drives up to 4 TB (and often up to 10 TB+ depending on the internal controller chip, such as ASM1153E).

• Data Transfer Speed: * USB 3.0: Up to 5 Gbps (SuperSpeed).

  • UASP Support: Many models include USB Attached SCSI Protocol, which increases read speeds by up to 70% and write speeds by 40% when used with a UASP-enabled host.

• Backward Compatibility: Works with USB 2.0/1.1 and SATA I/II.

Drive Compatibility

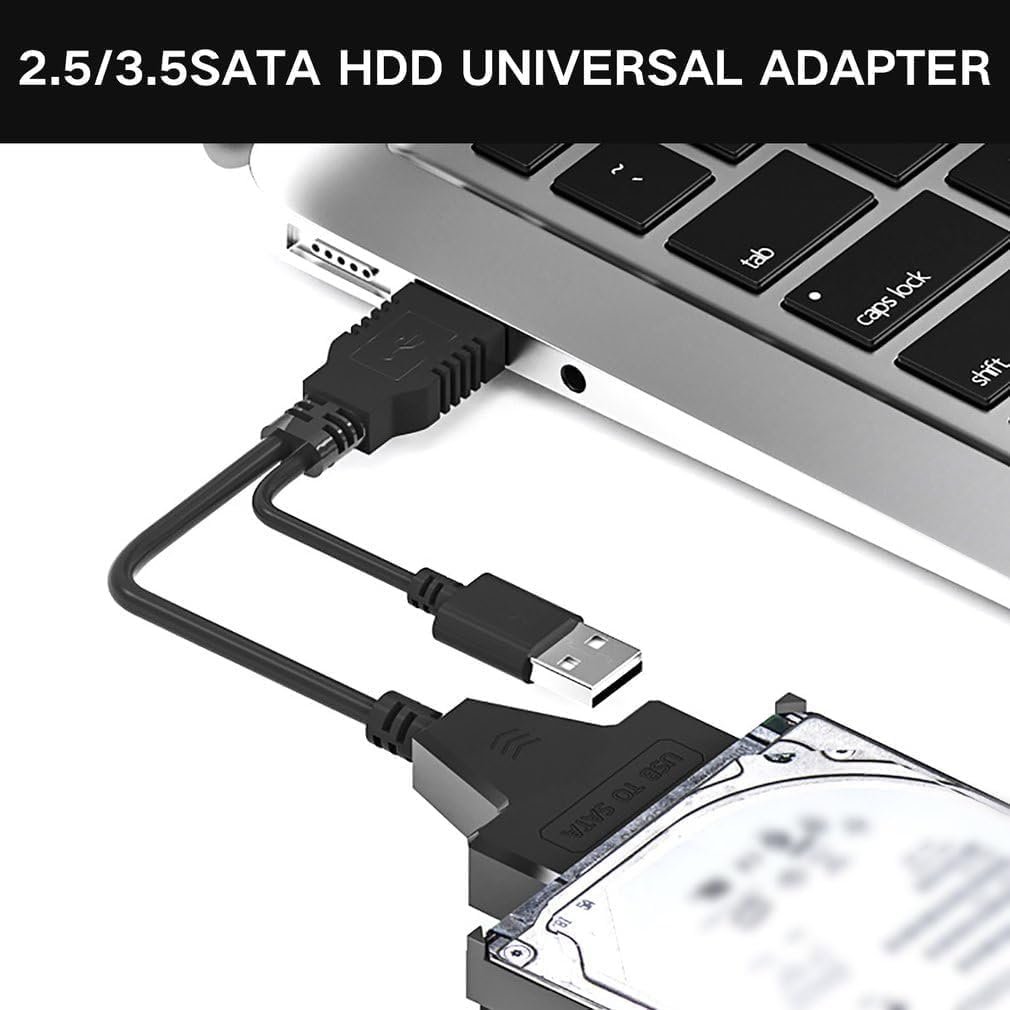

• 2.5-inch Drives: Supports all 2.5″ SSDs and HDDs. These typically run solely on the power provided by the USB port.

• 3.5-inch Drives: While the cable supports the data protocols for 3.5″ desktop drives, a 12V DC power adapter is required (usually sold separately or as part of a kit) because 3.5″ drives cannot be powered by USB alone.

Key Features

• Chipset: High-performance bridge controller (typically ASMedia or JMicron) ensuring stable connection for 4 TB density.

• Plug & Play: No drivers required for Windows 8/10/11, macOS, or Linux.

• LED Indicator: A blue/red light to signal power and a flashing light to indicate data transfer activity.

• Safety Features: Includes short-circuit and over-current protection to safeguard your high-capacity drive.

Physical Design

• Cable Length: Typically 20cm to 50cm (approx. 8–20 inches) to maintain signal integrity at 5 Gbps speeds.

• Build: Reinforced plastic housing for the SATA connector and a gold/nickel-plated USB head for corrosion resistance.

• Portability: Ultra-slim design, making it a portable alternative to bulky external hard drive enclosures.

Comparison: USB 2.0 vs. USB 3.0
